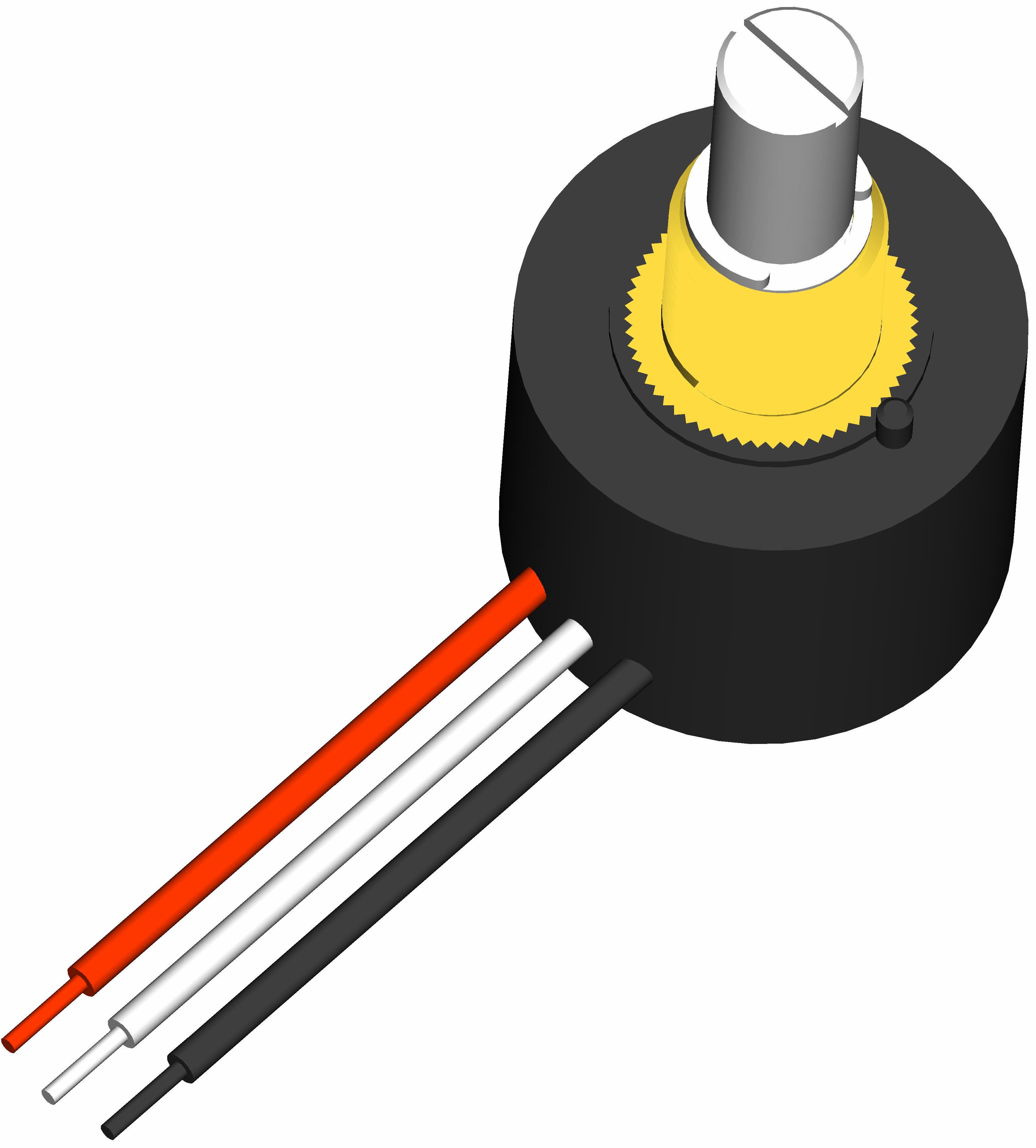

New Product Release: Non-Contact Angle/position Sensor FHS22, For Industrial and Medical equip.
Source:Polyshine   Time:6/18/2012   Clicks:12939



1.     Contactless rotary angle/position sensor

2.     Long life, over 10 Million cycles

3.     Programmable angular range from 15 to 360 degrees (without dead band).

4.     Simple& Robust magnetic design

Applications: Industrial machinery, Medical equip. (Angle detection of rotating section)



Electrical characteristics

Item

Spec.

Item

Spec.

Output voltage

0.25V to 4.75V typical

Output load

10KΩ typical, 1KΩ Min

Output current

±8mA Max

Output temperature

Within 3% Vout

Input voltage

DC5V±10%

Effective electrical angle

15° to 360° (360° is typical)

Supply current

±7.5mA typical, 11mA Max.

Insulation resistance

100MΩ Min, DC 500V

Independent Linearity

± 0.5% (± 0.25% available)





Mechanical characteristics

Item

Spec.

Item

Spec.

Rotational torque

Within 5mN.m Within 20mN.m (O-ring seal)

Total rotational angle

360° (Endless)

Push strength

10Kg Min.

Pull strength

10Kg Min.

Shaft material

Stainless steel

Bushing material

Brass nickel plated

Environmental characteristics

Item

Spec.

Item

Spec.

Storage temperature

-55°C to +125°C

Operating temperature

-40°C to +105°C

Rotational life

50 Million cycles Min (With ball bearing)

Shock

Per MIL R-39023, 6ms Saw-tooth 100 G’s,18 times

10 Million cycles Min (With bushing bearing)

Vibration

Per MIL R-39023, 10 G’s, 100 to 500 Hz,12Hrs

ESD

±8KV max.(human body model)±15KV air discharge.

Soldering condition

Manual soldering: 350° Max., 3Sec. Max.

EMS

100V/m,200MHz~1GHz
