J55 Series Big-joysticks Anniversary Celebration
Source:Polyshine   Time:4/24/2017   Clicks:961

If you watch The Big Bang Theory, you must have deeply impression on drone made by a famous Chinese manufacture. It appeared in several episodes. But do you know how drone remote controller work? In fact, there are two big-joysticks inside. They are the most important components for controller. Today, we’d like to introduce PS J55 series big-joystick to you.



PS J55 series big-joystick started mass production in Mar, 2016. We have provided tens of thousands big-joystick to famous drone manufactures in the past one year. These joysticks had been assembled to remote controller and worked very well. Now they are in worldwide and stick to their post.

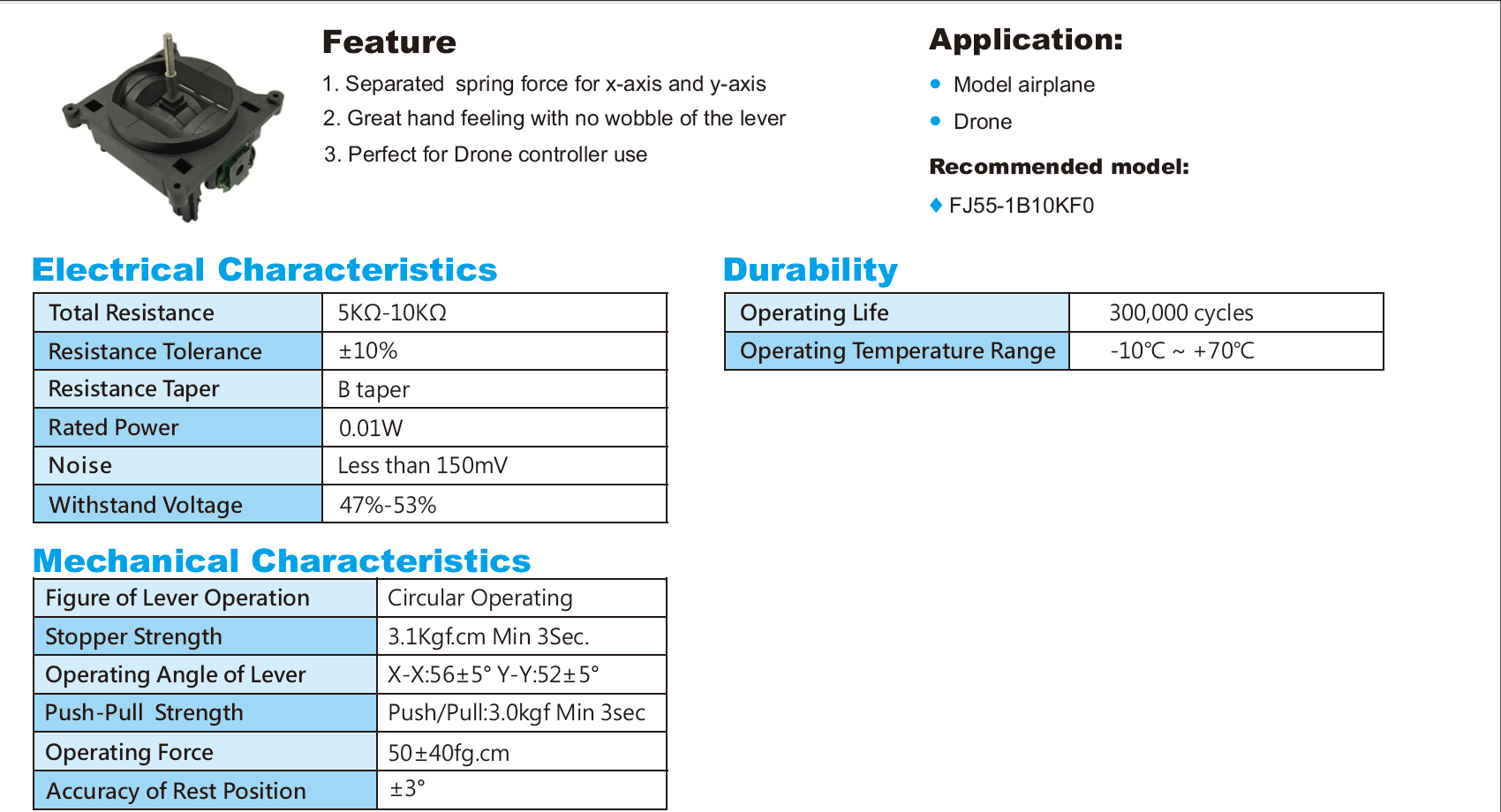

J55 series is the biggest size joystick among PS’ products. Its overall size is 60mm*60mm*33.6mm (handle is not included). Separated spring force for X-aixs and Y-aixs design can provide great hand feeling with no wobble of the lever. Now J55 series is most widely used in drone remote controller.

J55 series is our most-recommend joystick for drone remote controller, which is independently developed by PS and has 1 patent. We have built full set tooling for this model. Accuracy of lever reset position has reached a very high level. The normal resistance is 5KΩ and 10KΩ. 80°& 333° is alternative option for the angle of joystick. We also can make some parameter change depend on different application.

J55 series has been proved highly accuracy and good reliability so far. We hope more and more drone manufacture to know and use our big-joystick in future. We are here to serve you…
