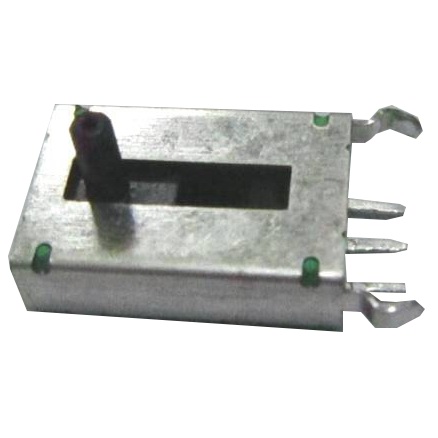

| Series | FSE10 |
| Package diameter | 10 mm |
| Operating Direction | |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 300K cycles |
| Switch Option | N/A |
| Detent Option | N/A |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | +/-20% |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | Slide |
| Power rating | 0.1W |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1、 High reliability
2、Simple construction (only 4 component parts)
3、ROHS compliant and lead free wave soldering.
4 、Long life, over 300,000Cycles.
| Electrical characteristics | |
| Resistance Range | 1K~100K |
| Total Resistance Tolerance | +/-20% |
| Taper Style | B taper |
| Power Rated | 0.2W @50°C |
| Independent Linearity | +1/-2% |
| Max. Voltage | DC30V |
| Contact noise | Within 10%TR |
| Mechanical characteristics | |
| Mechanical Travel | 8mm |
| Electrical Travel | 6.4mm |
| Slide Torque | 200gf Max. |
| Push Pull Strength of Lever | push: 5Kg Min; pull: 2Kg Min. |
| Stopper Strength | 3Kg Min, 5Sec. |
| Typical Applications | |
| Automotive Seat Position Memory. | |
| Automotive Headlamp Leveling Position Sensors. | |
| Automotive Rear-view Mirror Position Sensors. | |
| Environmental characteristics | |
| Storage Temperature | -40°C to +105°C |
| Operating Temperature | -40°C to +105°C |
| Life Cycles | 200,000 Cycles Min |
| Heat Resistance | +105±2°C, 96H △TR:± 2% ,Linearity:±3% |
| Cold Resistance | -40 ±3°C, 96H △TR:±20% ,Linearity:±3% |
| Humidity Resistance | +60 ±20°C, 90~95RH, 100H △TR:±20% ,Linearity:±3% |
| Temperature Cycles | -40°C~+105°C, 5cycles △TR:±20% ,Linearity:±3% |
