Product Detail

Series F24KM
Package diameter 24mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 1
Power-linear 0.5W
Power-audio 0.25W
Life cycle 10K
Switch Option Y
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1. Metal shaft style.

2.Carbon element.

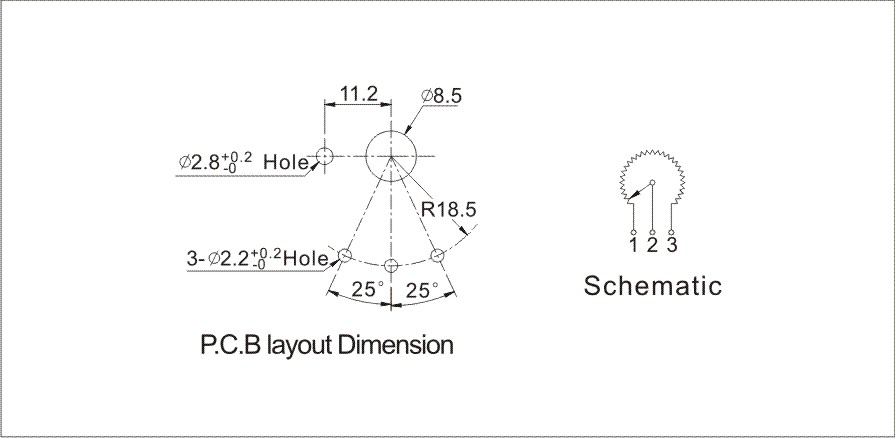

3.Assorted pin layout.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500Ω<R<1MΩ: ±20% :R<500Ω or R >1MΩ: ±30%
Resistance Taper  A, B, C
Max. Operating Voltage  Linear Taper B: AC 500V, other Tapers: AC 250V
Rated Power  Linear Taper B: 0.5W: Other Tapers: 0.25W
Rotational Noise  Less than 100mV
Insulation Resistance  More than100MΩ at DC 500V
Withstand voltage  1 minute at AC 500V
Residual Resistance  Term.1~2: Less than 10 Ω: Term.2-3: Less than 10Ω
Mechanical characteristics
Total Rotational Angle  300°±10°
Rotational Torque  20 ~150gf.cm
Rotational Stopper Strength  5.0Kgf.cm Min.
Push-Pull Strength  10.0Kgf Min
Switch characteristics
Switch Circuit  S.P.S.T.
Switch Contact Resistance  Less than 50mΩ
Switch Rated Power  1.0A at AC/ DC 125V
Switch Angle  50°±10。
Switch Torque  300gf.cm-800gf.cm
Switch Life  15.000 Cycles.
Durability
Rotational Life  Standard life: 15,000 Cycles Min.: Long life: 1Million Cycles Min.
