| Series | F16 |
| Package diameter | 16mm |
| Operating Direction | Horizontal Vertical |
| Number of Gangs | 1 |
| Power-linear | 0.1W |
| Power-audio | 0.05W |
| Life cycle | 10K |
| Switch Option | Y |
| Detent Option | N/A |
| Specification | Document download |
Introdution
1.Carbon element.
2.Molded case.
3.Wide assortment of resistance tapers.
| Electrical characteristics | |
| Total Resistance | 100Ω ~1MΩ |
| Total Resistance Tolerance | 20% |
| Resistance Taper | A, B, C, D etc. |
| Max. Operating Voltage | Taper B: AC 200V.Other Tapers:AC150V |
| Rated Power | Taper B: 0.1W; Other Tapers: 0.05W Sliding Noise: Less than 100mV |
| Residual Resistance | Term.1~2: Less than 10Ω;Term.2~3:Less than 10Ω |
| Mechanical characteristics | |
| Total Rotational Angle | 260°± 10° |
| Rotational Torque | 10gf.cm~100gf.cm |
| Rotational Stopper Strength | 2.0Kgf.cm Min. |
| Push-Pull Strength | Push: 1.0Kgf.cm Min |
| Durability | |
| Rotational Life | 10,000 Cycles |
| Switch characteristics | |
| Switch Circuit | S.P.S.T |
| Switch Contact Resistance | Less than 50mΩ |
| Switch Withstand Voltage | 1 Minute at AC 500V |
| Switch Torque | 150gf.cm~450gf.cm |
| Rated Power | 1.0A at AC/DC 12V |
| Switch Rotational Angle | 30±° 10° |

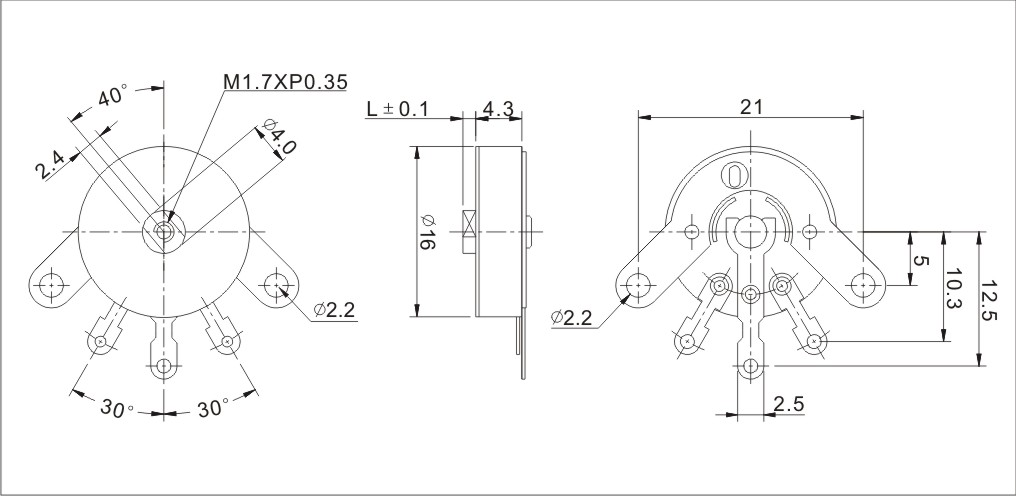

.jpg)

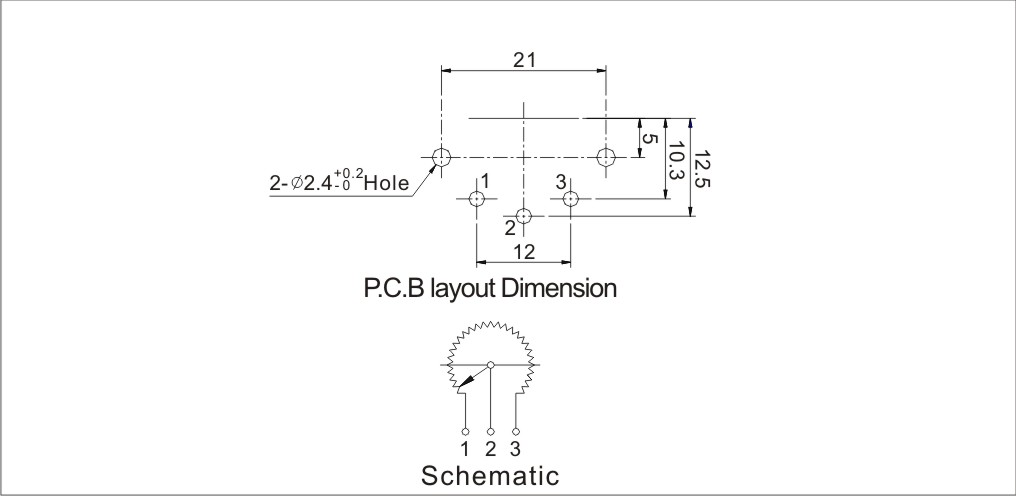

.jpg)
