| Series | F081 |
| Package diameter | 8mm |
| Operating Direction | Vertical |
| Bushing material | |
| Number of Gangs | 1-6 |
| Power-linear | 0.05W |
| Power-audio | 0.025W |
| Life cycle | 25K |
| Switch Option | Y |
| Detent Option | Y |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
F081 Series

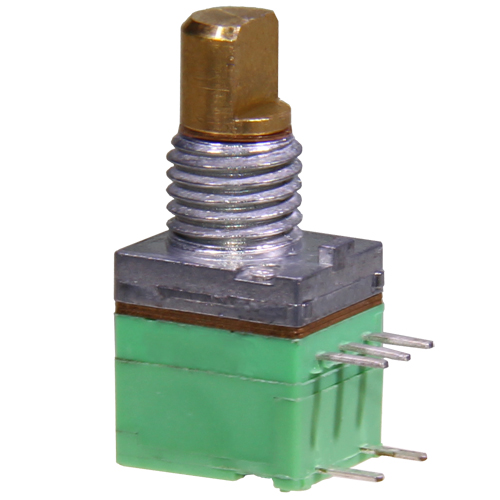

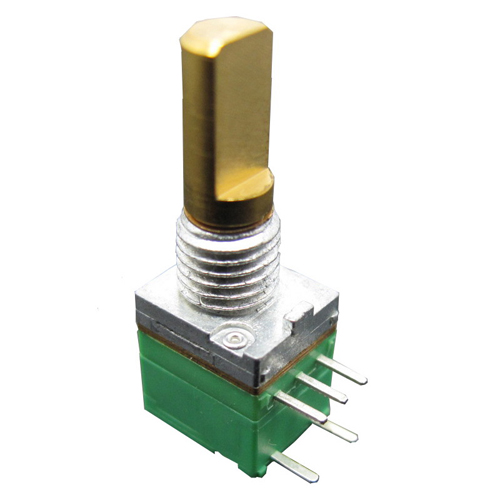

Metal shaft Potentiometer
Feature
1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Miniature design for Audio and walkie talkie applications.
4. Long Life Type Available.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Resistance Tolerance |
500Ω
|
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC 50V, DC 10V |
| Rated Power | 0.05W |
| Rotational Noise | 100 mV Max |
| Insulation Resistance | Less than 100MΩ at DC 250V |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | 50Ω Max |
| Gang Error (Dual Unit or Multiunit) | 40db~0db±3db |
| Mechanical characteristics | |
| Detent | 1(Center) detent, 11 detents |
| Total Rotational Angle | 300°±10° |
| Push-Pull Strength | Pull : 10Kgf Max; Push: 10Kgf Max at 10S |
| Rotational Torque | 20~100gf.cm |
| Stopper Strength | 3.0Kgf.cm Min |
| Shaft Wobble | 0.5 mm Max |
| Durability | |
| Rotational Life | Standard life: 30,000 Cycles Min. / Long life: 100,000 Cycles Min. |
| Cold Test | -20±2℃ for 96 hours,△TR< ±15% |
| Dry heat | 70±2℃ for 96 hours,△TR< ±15% |
| Temperature cycle | -20~+70℃, 5 cycles,△TR< ±15% |
| Soldering condition | Wave soldering: 260℃±5℃,5Sec. Max Manual Soldering: 350℃±10℃ 3 Sec Max. |
| Switch characteristics | |
| Rated Power | 3.0 A at DC 16V |
| Contact Resistance | Less than 50mΩ |
| Switch Angle | 30°±10° |
| Switch torque | 50~250gf.cm |
| Switch life | 25,000 cycles without load |
